Detailed Product Description
Coil Thickness: 0.2-0.8mm Forming Frame Structure: Guiding Column
Drive Type: Gearbox Drive Cutting Type: Servo Flying-saw Cutting
Main Motor Power: 7.5KW PLC: Panasonic BRAND

PU Foam Rolling Shutter Door Slat Roll Forming Machine With 0-15m/Min Forming Speed, Gearbox Drive Type



   Summary of PU Foam Roller Shutter Door Slat



This roll forming machine is for producing aluminum shutter door & window slats with foam-filled, Our Roll-forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes, inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles.





   Main Technical Specifications



1). 3 Ton Manual Decoiler



  1. Decoiler Type: Manual type decoiler

  2. Weight capacity of decoiler: 3Ton

  3. Manual expanding

  4. Passive uncoiling

  5. I.D: 508mm, 610mm



2). Feeding Guide



  1. Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling.



3). Main PU Foam Roller Shutter Door Slat Machine



  1. It consists of machine frame, transmission parts and forming rollers etc.

  2. Material Thickness: 0.3-0.8mm

  3. Forming Material Type: Aluminum, GI. Carbon steel

  4. Machine Frame Stand: Welded structural steel with shot blasting treatment

  5. Shaft Diameter: 40mm or 50mm

  6. Material of Shaft: High grade 45# steel with heat treatment

  7. Roller Material: High grade GCr15, model steel, all treated by CNC precise machines, HRC50-54

  8. Forming Stations: about 34 stations (depend on final design)

  9. Forming Speed: 0-15m/min

  10. Forming Motor: 7.5KW

  11. Forming Structure: Guiding column

  12. Transmission: Gearbox drive

  13. Manually adjust the spaces and rollers can produce sheet of different thickness in a range.



4). PU Injection Foam Machine



  1. PU Foam Machine: With two group " ISO / POLY "

  2. Low-pressure foaming machine



5). Straighten Device



  1. To straighten the profile



6). Pneumatic Punching Machine



  1. Material of Cutter: Cr12Mov, quenched HRC58-62

  2. Continuous punching



7). Servo Flying-saw Cutting



  1. Servo tracking flying-saw cutting

  2. Cutting Power: 2.2KW

  3. Servo Power: 1.5KW



8). PLC Control System



  1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.

  2. Provide good man and machine screen, which can set the batches, plate length, and quantity.

  3. Operation type: Touching screen + Button

  4. Using encoder to calculate the number and measuring the length

  5. Electrical control: PLC frequency control system with touch screen

  6. PLC: PANASONIC Brand

  7. Encoder: OMRON Brand

  8. Size of PLC control board: 700mm (L) x 1000mm (H) x 300mm (W)



9). Run-out Table



  1. It is used to support the finished panels

  2. Teh table we supply is 2 pieces with length of 2000mm, it can support panels with 10000mm at normal condition

  3. The frame of supporter is welded by square-steel

  4. Simple non-power table type





   Main Components



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Heating Device 1 Unit
PU Injection Foaming Machine 1 Unit
Pneumatic Tracking Punching 1 Unit
Servo Flying-saw Cutting 1 Unit
PLC Electrical Control Board 1 Unit
Run out Support Table 1 Unit





   PU Foam Roller Shutter Slat Profiles



PU Foam Rolling Shutter Door Slat Roll Forming Machine With 0-15m/min Forming Speed , Gearbox Drive Type
PU Foam Rolling Shutter Door Slat Roll Forming Machine With 0-15m/min Forming Speed , Gearbox Drive Type





   Working Flow of PU Foam Roller Shutter



Manual Decoiler --- Feeding Guide --- Roll Forming --- PU Foam Injection Machine --- Straighten Device --



- Pneumatic Punching --- Servo Flying-saw Cutting --- Run out Tables



PU Foam Rolling Shutter Door Slat Roll Forming Machine With 0-15m/min Forming Speed , Gearbox Drive Type

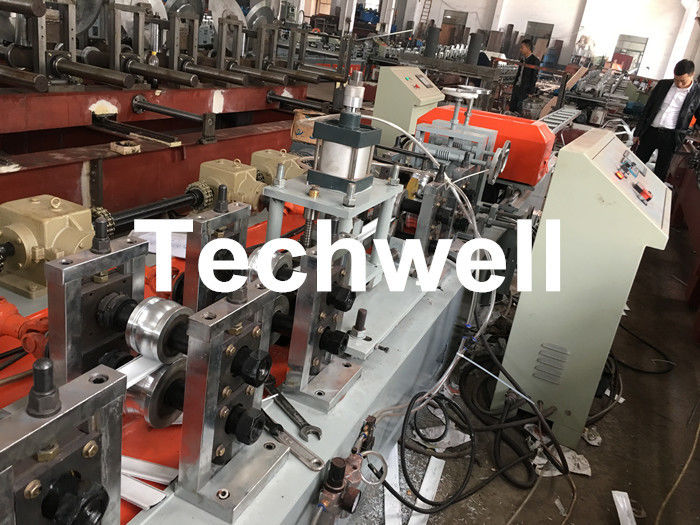

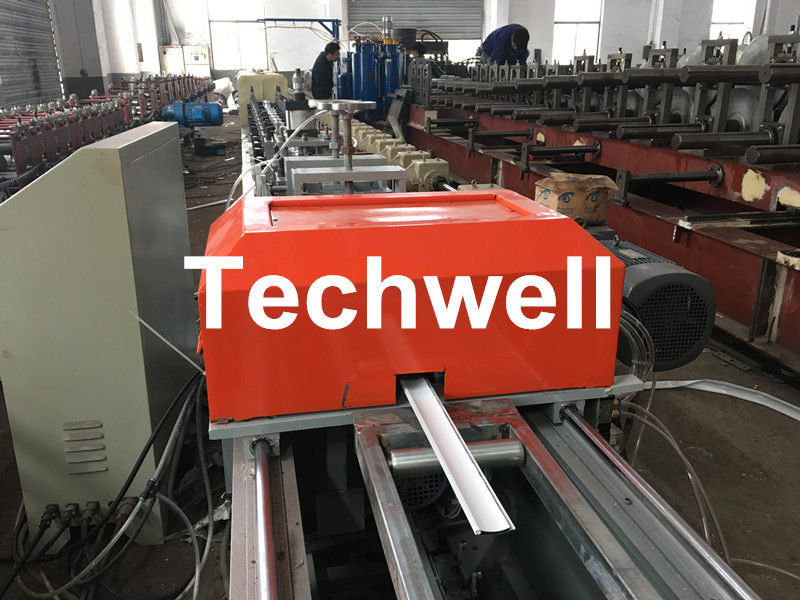

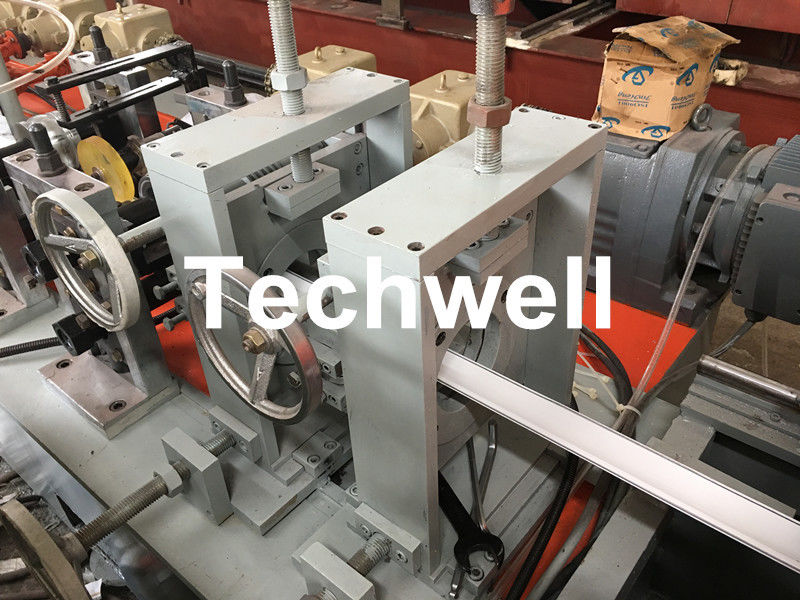

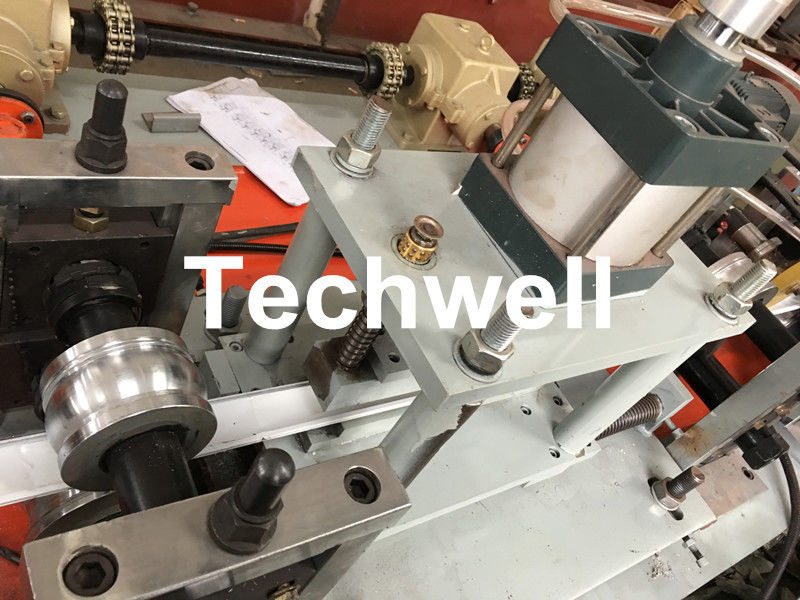

   More Machine Pictures
