Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure

China Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure supplier
Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure supplier Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure supplier Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure supplier Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure supplier

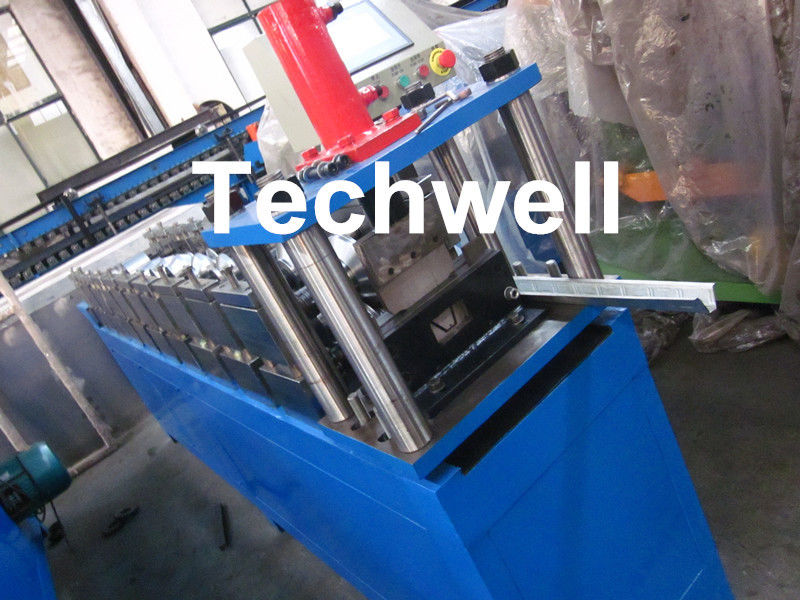

Large Image :  Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-ST65

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard packing
Delivery Time: 55-65 working days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Profile Thickness: 0.4-1.0mm Material: GI Coil
Axis Diameter: 70mm Forming Frame Structure: Guiding Column + Slide Blocks
PLC: Panasonic Brand Forming Speed: 0-15m/min

GI Coil Furring Channel Roll Forming Machine For Making Roof Ceiling Batten With Guiding Column Forming Structure



   Description of Furring Channel Roll Forming Machine



Furring channel light keel roll forming machine could be used to make light keel furring channel in batch fully automatically. PLC control system, touch screen, so ZT furring channel light keel roll forming machine is easy to operate.





   Main Specifications of Furring Channel



  • Material: G.i Coil
  • Material Thickness:0.4-1.0mm
  • Forming Speed: 0-15m/min
  • Main Power: 4KW
  • Hydraulic power: 4KW
  • Forming Station: about 10 steps ( adopt Italy Technology )
  • Axis Diameter: ¢ 70 mm
  • Forming Frame Structure: Guiding Column + Slide Blocks; This forming frame structure design is much high precision than wall plate welding structure
  • PLC Brand: PANASONIC Brand
  • Machine Diameter: about 7000mm(L) x 800mm(W) x 1300mm (H)
  • Weight of machine: about 4 Ton
  • Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )



   Main Components



Decoiler / Uncoiler 1 Unit
Feeding Device 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Punching 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control 1 Unit
Out-put Table 1 Unit





   Applications



Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...



   Competitive Advantages



1.Best design oriented for your special requirements

2. Durable and widely used products

3.Simple to operate when assemble

4.Easy to handle the products

5.Direct manufacturer, provide with high quality and best price.

6.Provide sample in free.

7.Cutting service.

8.Products and design solution supplied fast and freely

9.Best design oriented for your special requirements



   Machine Reference Pictures

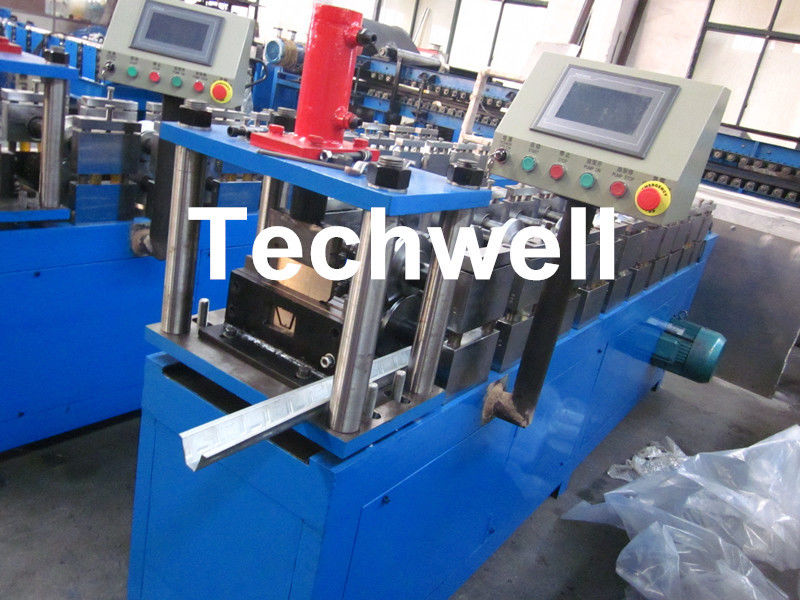

Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure

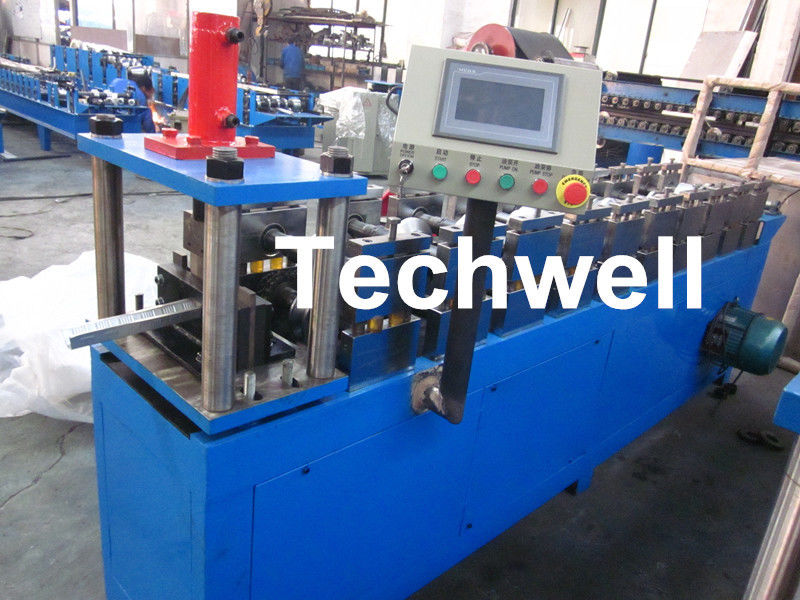

Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure

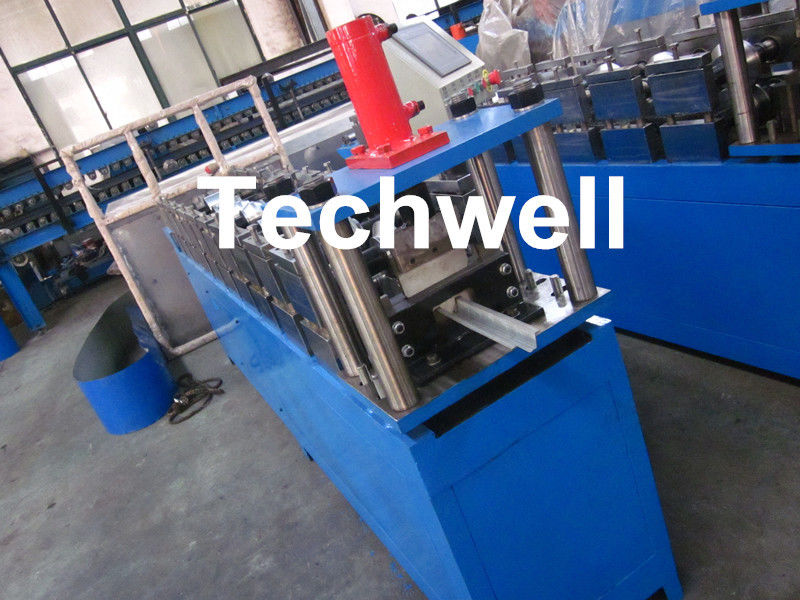

Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure





   Factory Pictures



Gi Coil Furring Channel Cold Roll Forming Machine Guiding Column Form Structure
