Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing

China Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing supplier
Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing supplier Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing supplier Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing supplier Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing supplier

Large Image :  Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RCM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contatc us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Raw Material: Galvanized, Pre-painted Coil Thickness: 0.3-0.7mm
Finished Profile: Roof Ridge Cap Profile Forming Stations: Approx 15 Stations (depend On Final Profile)
Working Speed: 0-15m/min Cutting Type: Hydraulic Cutting

Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap, Ridge Flashing



   Description of Roof Ridge Cap, Ridge Flashing



Steeline Roll Top Ridge is a traditional style of ridge cap. Ridge capping provides an aesthically appealing finish as well as acting a as a watertight barrier. Roll Top Ridge is the most common type of Ridge Capping used. Steeline Roll Top Ridge is a high quality, durable and cost effective way to give your roof an attractive finish.



   Main Technical Specifications of Roof Ridge Roll Forming Machine



  • Material thickness: 0.3-0.7mm
  • Material: Galvanized, Pre-painted, with yield strength 300Mpa
  • Forming Stands: about 15 groups ( depend on final design )
  • Material of Roller: High grade 45# steel, all treated by CNC precise machines, and coated with 0.05mm hard chrome and polishing treatment.
  • Material of Shaft: High grade 45# steel with heat treatment.
  • Shaft Diameter: ¢75mm
  • Working Speed: 0-15 m/min
  • Main Power: 5.5 KW
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Tranducer: PANASONIC Brand
  • Voltage: 380V, 3 Phase 50Hz ( or according to customers local requirement )
  • Machine Weight: about 5.5 Ton
  • Machine Dimension: about 8000mm(L) x 1200mm(W) x 1400mm(H)
  • This roll forming machine suits for coiled metal material, make required shape after processing of uncoiling, forming continuously and cutting to length. Adopt PLC controlling system, AC frequency adjusting-speed technology, so that realize automatic production continuously.





   Flowing Chart of Roll Forming Machine



Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out Table





   Main Components



Decoiler 1 Unit
Feeding guide 1 Unit
Main roll forming machine 1 Unit
Hydraulic cutting 1 Unit
Hydraulic station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit





   Reference Profile Drawing



Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing
Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing

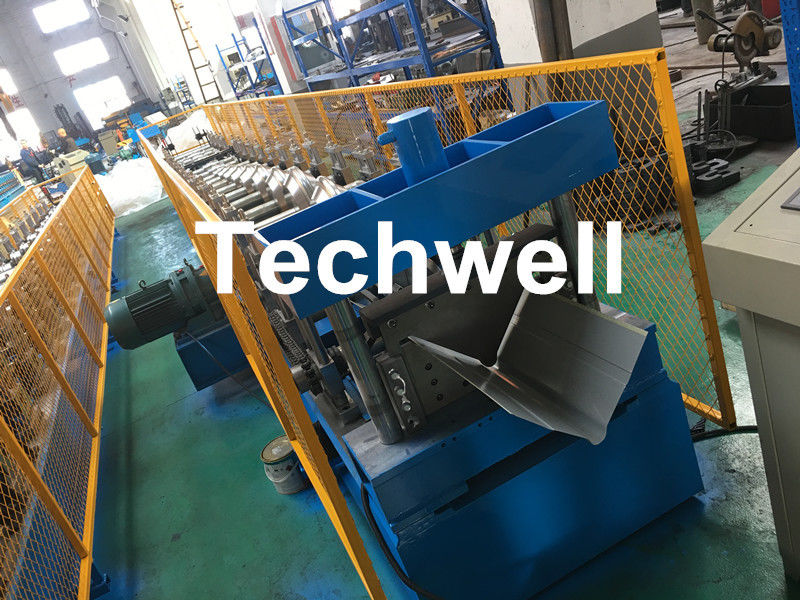

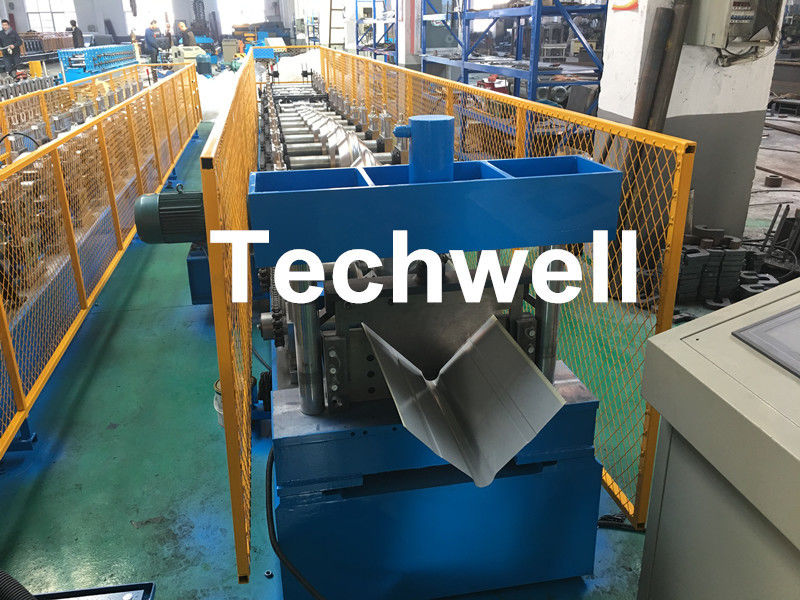

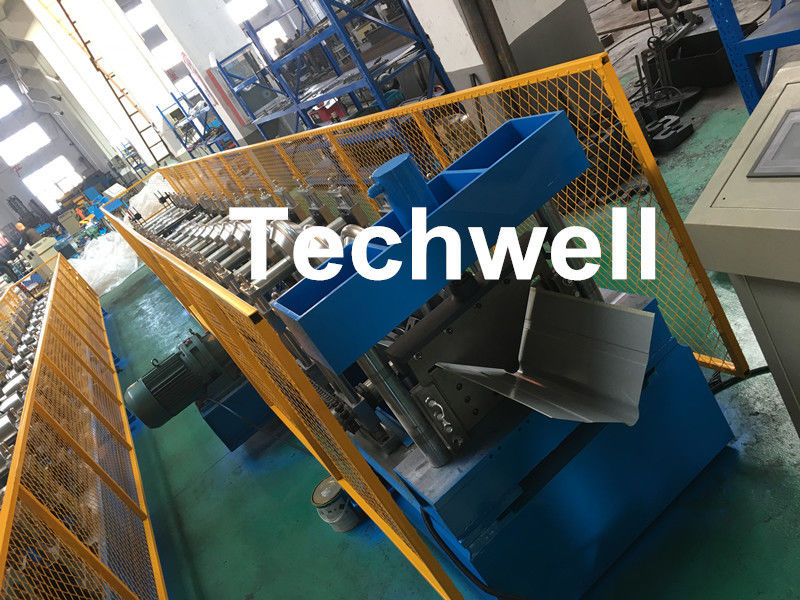

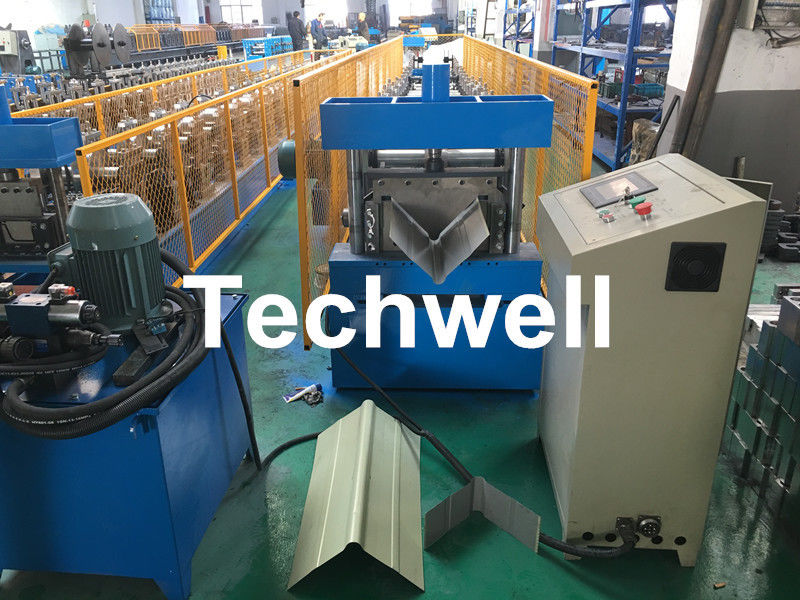

   More Machine Pictures



Customized Cold Roll Forming Machine With Manual Decoiler For Making Roof Ridge Cap , Ridge Flashing
