Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations

China Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations supplier
Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations supplier Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations supplier Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations supplier Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations supplier

Large Image :  Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RCM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Product Name: Ridge Cap Roll Forming Machine Motor Power: 5.5KW
Steel Thickness: 0.4-0.8mm Drive Type: Single Chain
Roller Material: 45# Steel Suitable Material: Color Steel Plate, Galvanized Steel

Roof Ridge Cap Roll Forming Machine With Single Chain Transmission, 15 Stands of Forming Stations



   Description of Roof Ridge Cap Roll Forming Machine



  • Ridge Cap finishes off hips and ridges. A ridge capping provides an effective watertight barrier, as well as an aesthetic finish to the cut ends of the sheet at the ridge and hip lines. Ridge Cap can provide the utmost protection in roofing with its industry-leading design to decorate as well as optimize the function of the roof and increase the life span of the roof. Our many different metal material options provide you with a wide array of design options to consist with your shingle style. Roof ridge cap made of fiberglass provide a watertight, and easy to install and are long-lasting solutions for utility buildings.

  • We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome.

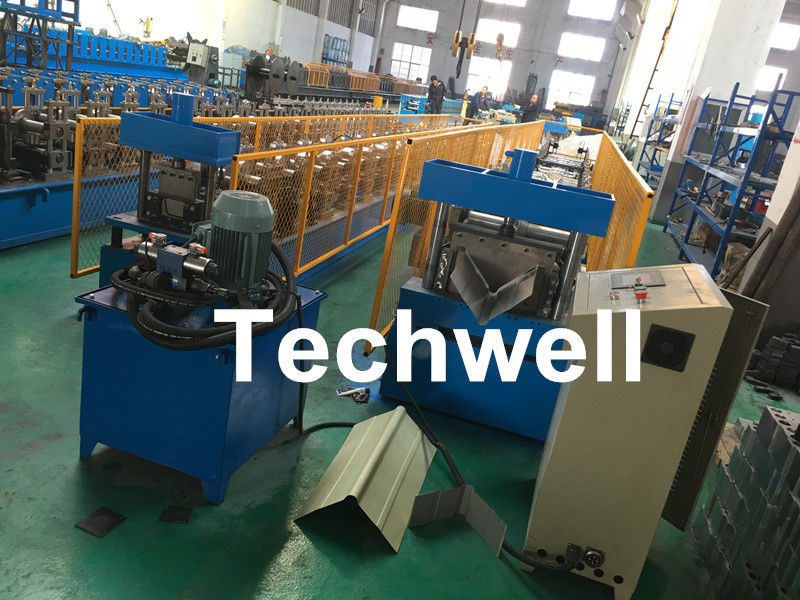

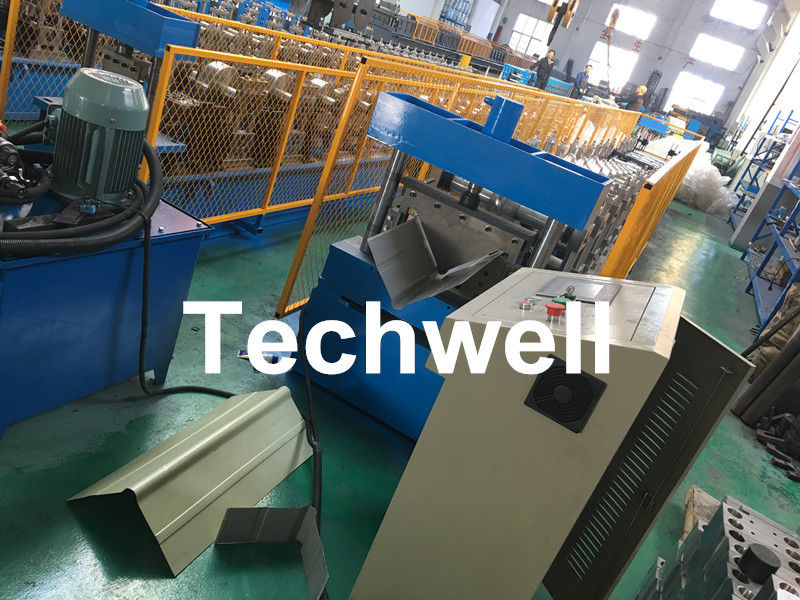

   Main Components



Decoiler 1 Unit
Feeding guide 1 Unit
Main roll forming machine 1 Unit
Hydraulic cutting 1 Unit
Hydraulic station 1 Unit
PLC computer control 1 Unit
Output table 1 Unit





   Main Specifications of Roof Ridge Cap Roll Forming Machine



1. Manual Decoiler
Capacity Max load 3000KG
De-coiler type Manual passive type de-coiler
2. Feeding Guide
Function It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after de-coiling.

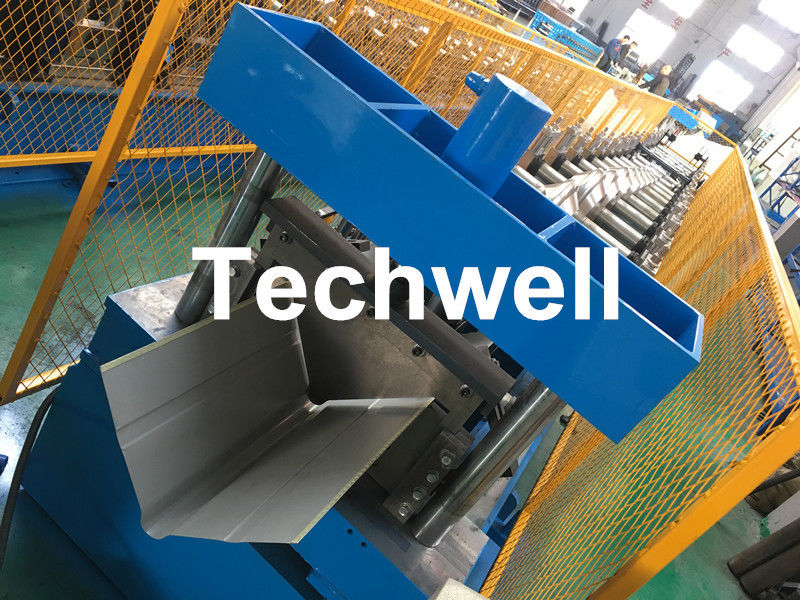

3. Main roll forming machine
Main motor power 5.5KW
Roller Stands Approx. 15 stations (depend on final design)
Machine frame stand Welded structural steel with shot blasting treatment
Forming Structure Guiding Column
Transmission Chain drive
Material of Roller High grade 45# steel, roller surface with 0.05mm hard chrome HRC58-62
Material Shaft High grade 45# steel with heat treatment
Shaft Diameter ¢70mm
Manually adjust the spaces and rollers can produce sheet of difference thickness in a range.

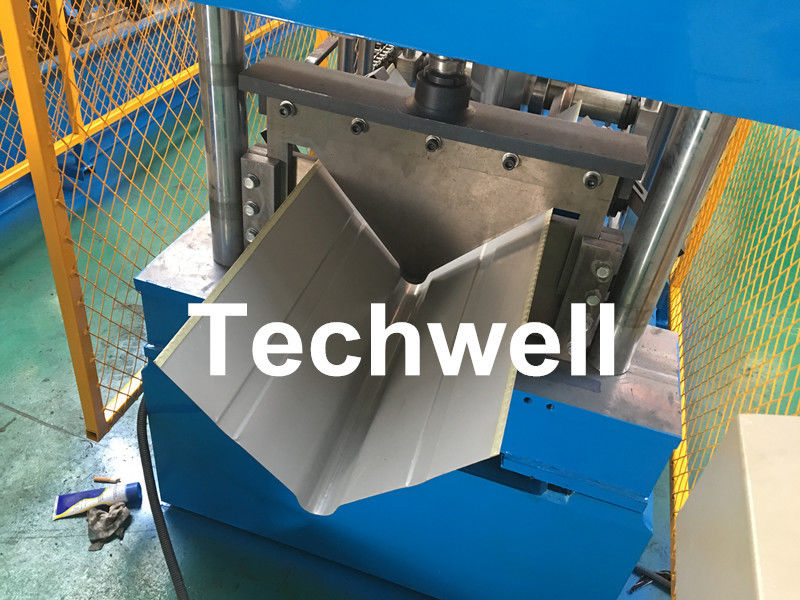

4. Cutting Device & Hydraulic Station
Adopts cutting die with same profile as the product, there is no waste when cutting
Hydraulic cutting
Blade material Cr12 with quenched treatment
Cutting Tolerance +/-1.5mm
Heat Treatment of Cutting Blade HRC50-60
Hydraulic Power 2.2KW
5. PLC Control System
Adopts PLC control technology, frequency adjust speed technology, realize the automatic production
Provide good man and machine screen, which can set the batches, plate length, and quantity
Using encoder to calculate the number and measuring the length
Operation Type Touch screen + Button
Electrical Control PLC frequency control system with touch screen
PLC Brand PANASONIC
Encoder Omron Brand
Size of PLC control board 700mm (L) x 1000mm (H) x 300mm (W)
6. Run-out Table
It is used to support the finished panels
The table we supply is 2 pieces, it can support panels with 10000mm at normal condition.
The frame of supporter is welded by square-steel.
Simple non-power table type.



   Reference Profile Drawing





Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations





   Finished Products Pictures



Roof Ridge Cap Roll Forming Machine With Single Chain Transmission , 15 Stands of Forming Stations
