   Description of Roof Ridge Cap Roll Forming Machine

• Different roof panel machines can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasium, airport, theatre, factory, warehouse, garage, exhibition center, etc.

• The complete ridge cap roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the ridge cap machine produces it automatically. The machines are easy to operate and running stable.

   Main Technical Specifications

• Material thickness: 0.4-0.8mm
• Material: Galvanized, Pre-painted, with yield strength 300Mpa
• Forming Stands: about 15 groups ( depend on final design )
• Material of Roller: High grade 45# steel, all treated by CNC precise machines, and coated with 0.05mm hard chrome and polishing treatment.
• Material of Shaft: High grade 45# steel with heat treatment.
• Shaft Diameter: ¢75mm
• Working Speed: 0-15 m/min
• Main Power: 5.5 KW
• Hydraulic Power: 2.2KW
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Tranducer: PANASONIC Brand
• Voltage: 380V, 3 Phase 50Hz ( or according to customers local requirement )
• Machine Weight: about 5.5 Ton
• Machine Dimension: about 8000mm(L) x 1200mm(W) x 1400mm(H)
• This roll forming machine suits for coiled metal material, make required shape after processing of uncoiling, forming continuously and cutting to length. Adopt PLC controlling system, AC frequency adjusting-speed technology, so that realize automatic production continuously.

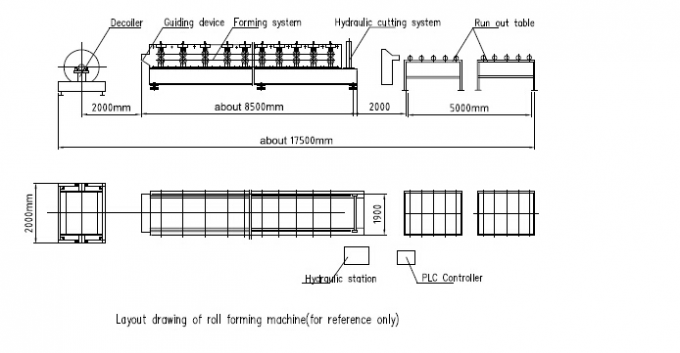

   Flowing Chart of Roll Forming Machine

Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out Table

   Main Components

• Decoiler ---------------------------------------------------------------- 1 Unit
• Feeding Guide -------------------------------------------------------- 1 Unit
• Main Roll Forming ---------------------------------------------------- 1 Unit
• Hydraulic Cutting ----------------------------------------------------- 1 Unit
• Hydraulic Station ----------------------------------------------------- 1 Unit
• PLC Computer Control ---------------------------------------------- 1 Unit
• Output Table -----------------------------------------------------------1 Unit

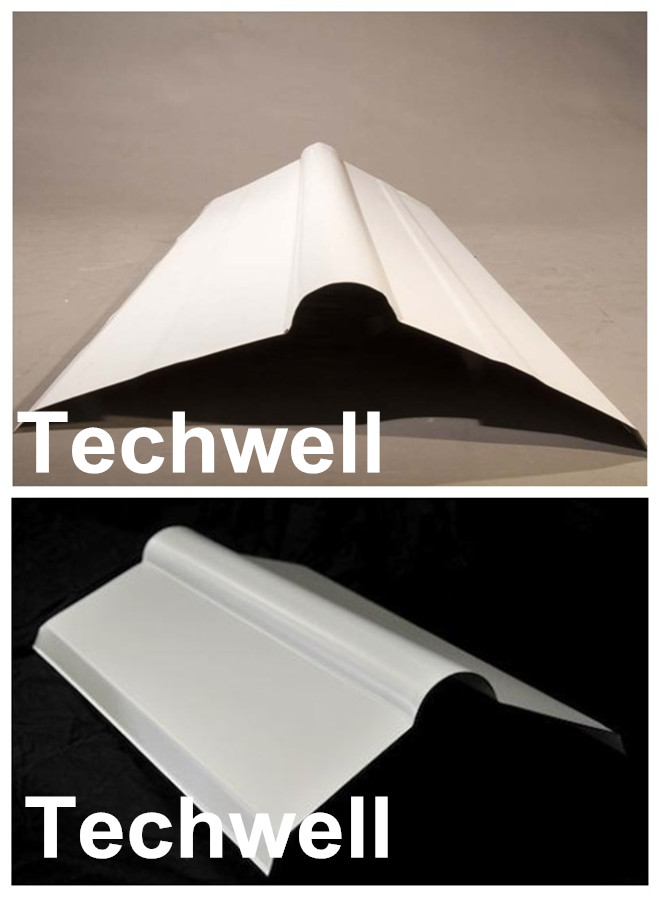

   Finished Product Pictures

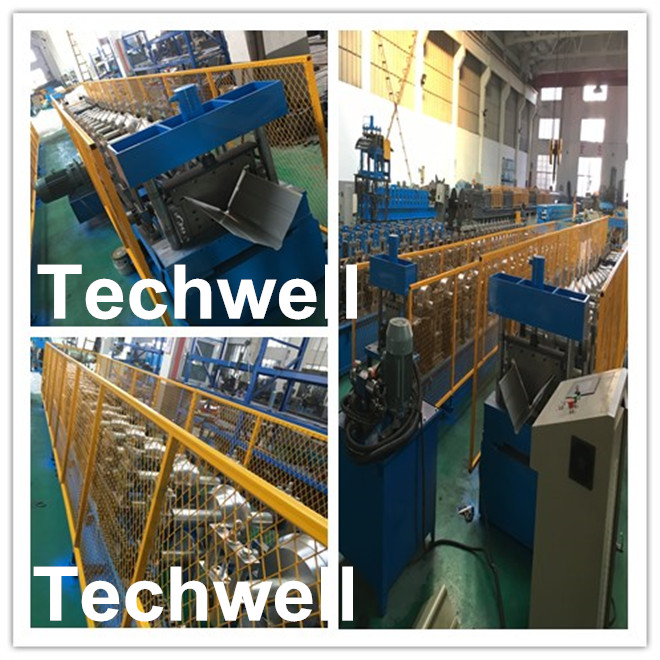

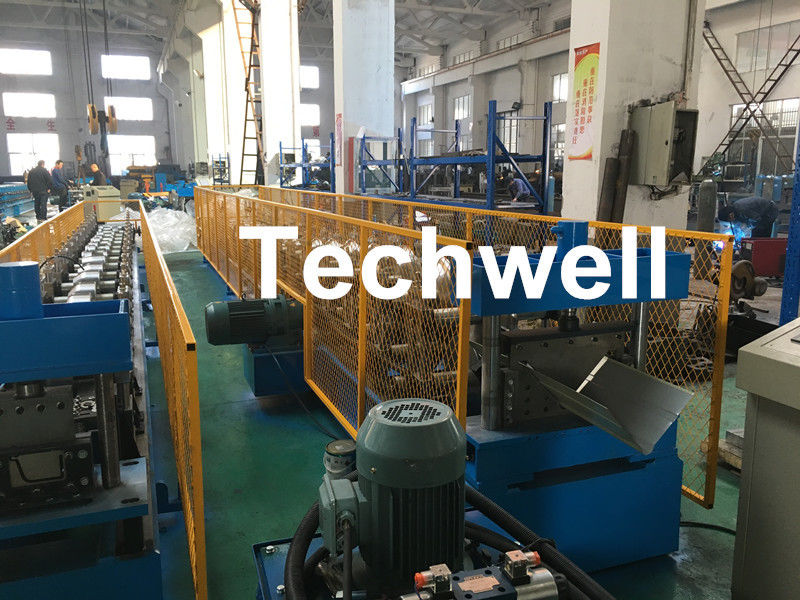

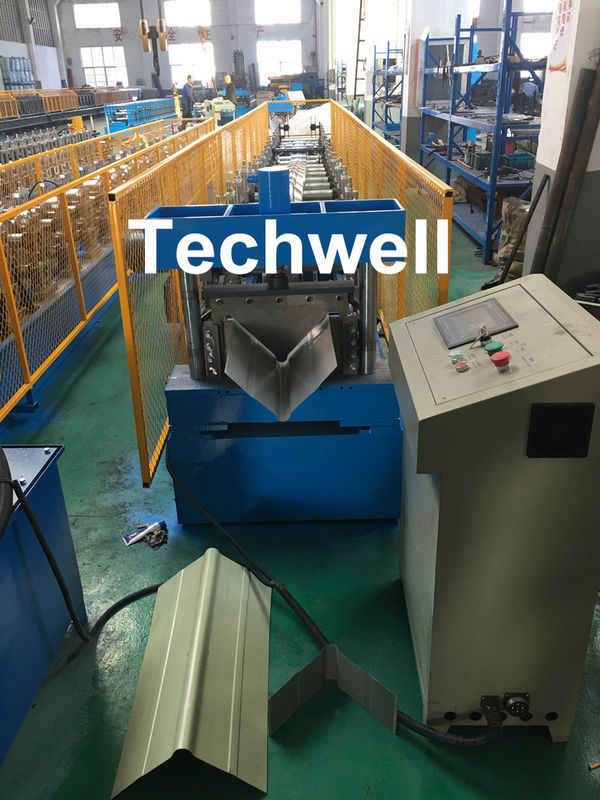

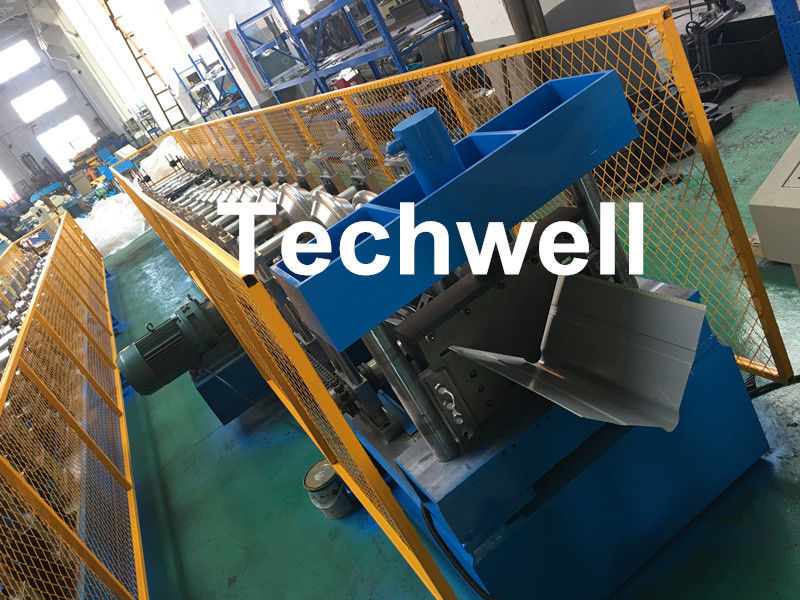

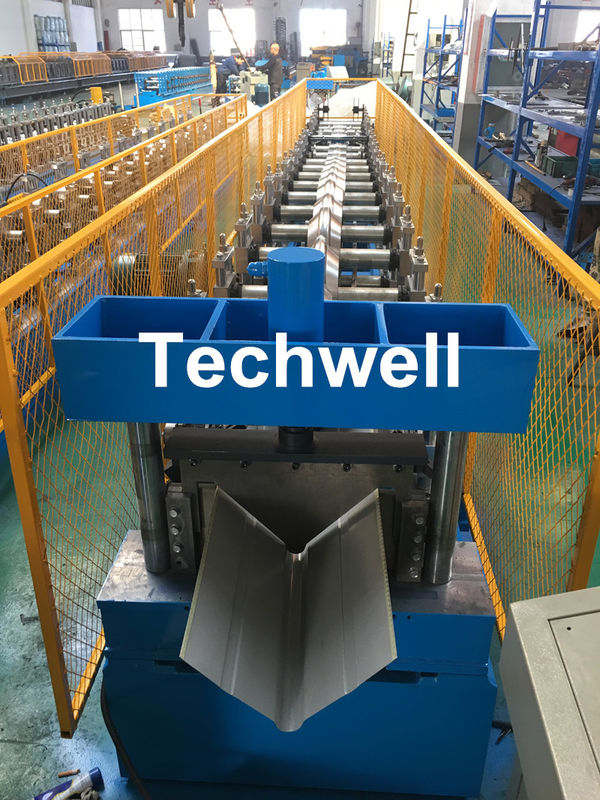

   More Machine Pictures
