Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed

China Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed supplier
Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed supplier Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed supplier Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed supplier Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed supplier

Large Image :  Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RCM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Profile Model: Ridge Cap Profile Material Of Cutting Blade: Cr12Mov Steel
Cutting Power: 3.0KW Forming Speed: 0-15m/min
Axis Diameter: ¢75mm Decoiler Type: Manual Or Auto Type (depend On Customer's Requirements)

Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed



   Introduction of Vallet Flashing Machine, Roof Ridge Cap Machine



  • The cap ridge roll forming machine is to produce angel title saving human resources and lower labor cost. This equipment is made up of automatic discharge table, feed leading table, and main forming machine, cutting device, hydraulic station and computer control system. Especially, the Optional system is normal uncoiler and hydraulic uncoiler.
  • This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on. It is producted continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.
  • The roof ridge cap roll forming machine can form metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this machine, the surface will be smooth and beautiful without any scratch on surface.



   Main Technical Specifications



NO   Technical Specifications Remark
1 Manual Decoiler Decoiler Type Manual passive decoiler
Weight capacity of decoiler 3 Ton
Manual expansing, passive uncoil
2 Main Roll Forming Machine Raw material Color steel plate, galvanized steel
Coil thickness 0.3-0.8mm
Roller stands approx 15 stations
Type of forming machine Chain transmission
Roller material High grade 45# steel, and surface coated with 0.05mm hard chrome
Shaft diameter ¢75mm
Material of Shaft High grade 45# steel
Motor power 5.5KW
Cutting type Hydrauluic cutting
Hydraulic power 3.0KW
Forming speed about 0-15m/min

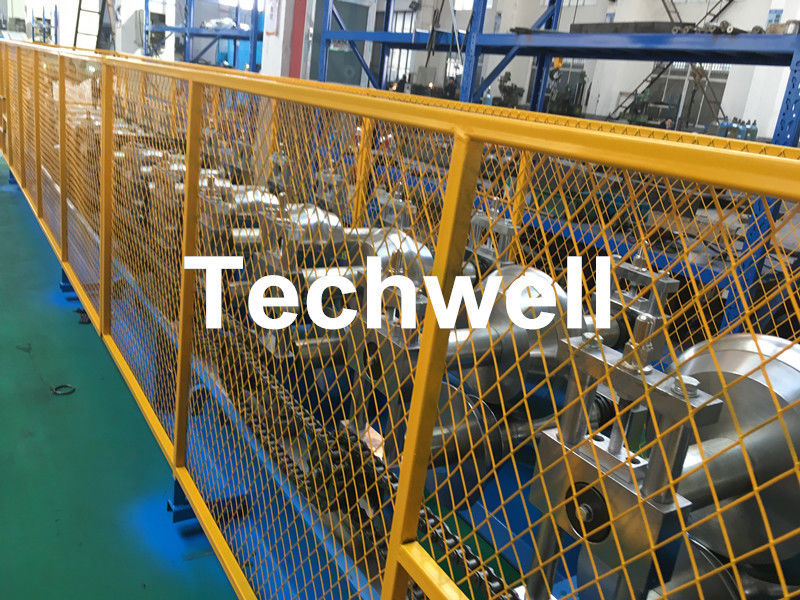

3 Mobile Protective Mesh To avoid accidents, the machine will be covered with the mobile protective mesh
4 Hydraulic pressing & cutting system Material of blade / pressing mould Cr12, 58-62 HRC hardness
Cutting type Hydraulic cutting
Hydraulic power 3.0KW
Length measuring Automatic encoder length measuring
Tolerance of length +/-1.5mm for each piece end product
Encoder OMRON Brand
5 Electrical System PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
6 Hydraulic Station Hydraulic station Famous Chinese brand
7 Support Tables Table type Simple nonpower type
Function To support the finished corrugated panels





   Working Flow Chart



Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out Table



Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed





   Applications



Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.

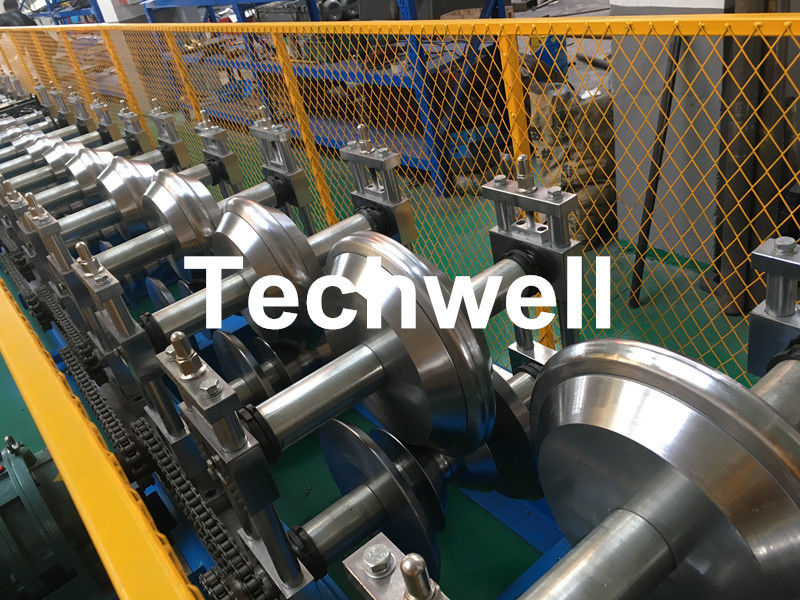

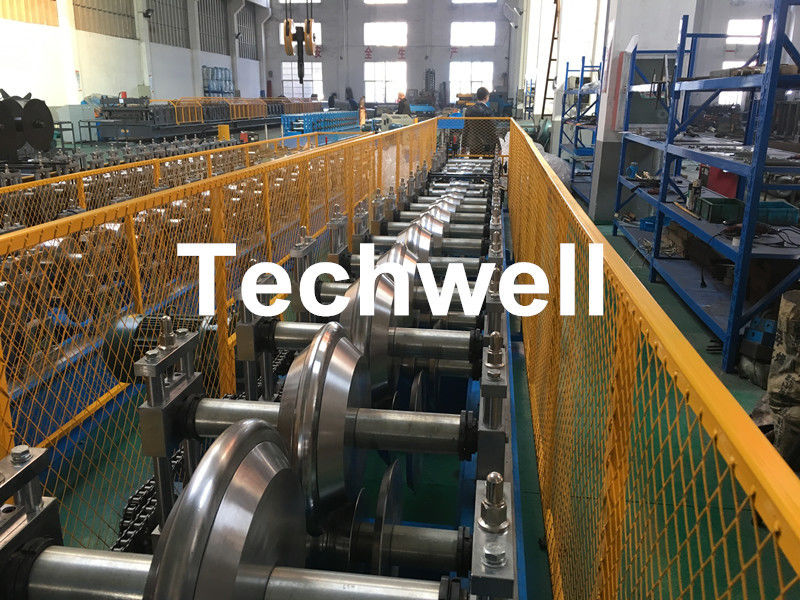

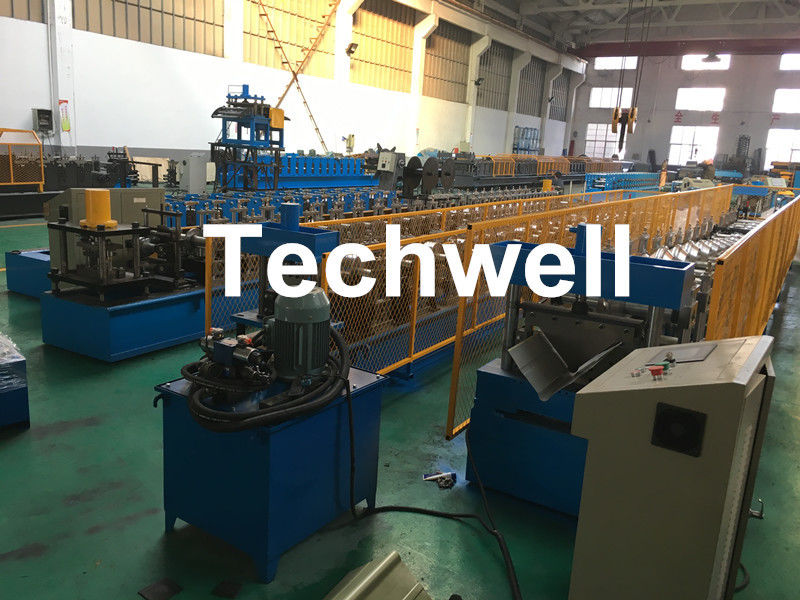

   More Machine Pictures



Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed

Metal Valley Flashing Roll Forming Machine With 45# High Grade Steel Roller Material And 0-15m/min Forming Speed
