Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels

China Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels supplier
Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels supplier Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels supplier Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels supplier Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels supplier

Large Image :  Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels

Product Details:

Place of Origin: China
Brand Name: TECHWELL
Certification: CE, ISO
Model Number: TW-RCM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Contact us
Packaging Details: Standard Packing
Delivery Time: 55-65 Working Days
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Profile Model: Ridge Cap Profile Decoiler Type: Manual Or Auto Type (depend On Customer's Requirements)
Material Of Cutting Blade: Cr12Mov Steel Control System: PANASONIC PLC Control With Touch Screen
Material Type: GI, PPGI Motor Power: 5.5KW

Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels



   Introduction of Ridge Cap Roll Forming Machine



  • Ridge Cap finishes off hips and ridges. A ridge capping provides an effective watertight barrier, as well as an aesthetic finish to the cut ends of the sheet at the ridge and hip lines. Ridge Cap can provide the utmost protection in roofing with its industry-leading design to decorate as well as optimize the function of the roof and increase the life span of the roof. Our many different metal material options provide you with a wide array of design options to consist with your shingle style. Roof ridge cap made of fiberglass provide a watertight, and easy to install and are long-lasting solutions for utility buildings
  • The complete ridge cap roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the ridge cap machine produces it automatically. The machines are easy to operate and running stable.



  • We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome.



   Main Technical Specifications



NO   Technical Specifications Remark
1 Manual Decoiler Decoiler Type Manual passive decoiler
Weight capacity of decoiler 3 Ton
Manual expansing, passive uncoil
2 Main Roll Forming Machine Raw material Color steel plate, galvanized steel
Coil thickness 0.3-0.8mm

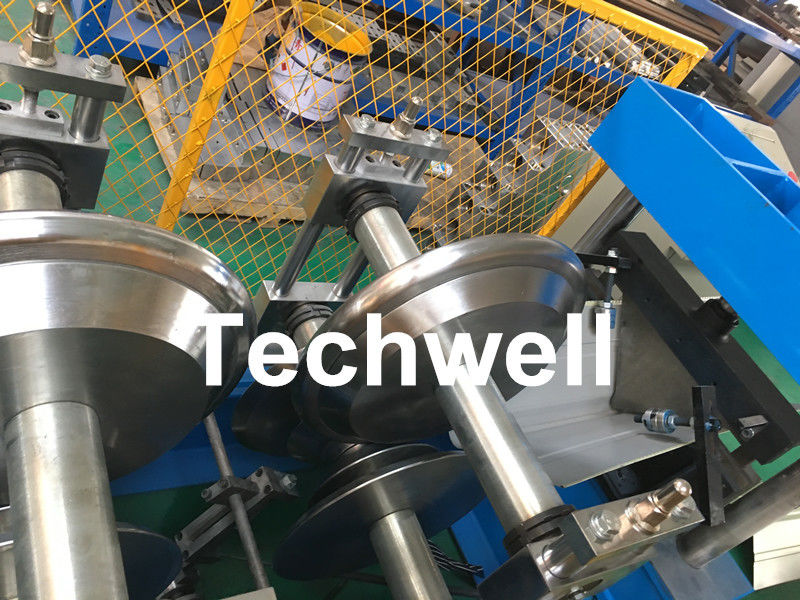

Roller stands approx 15 stations
Type of forming machine Chain transmission
Roller material High grade 45# steel, and surface coated with 0.05mm hard chrome
Shaft diameter ¢75mm
Material of Shaft High grade 45# steel
Motor power 5.5KW
Cutting type Hydrauluic cutting
Hydraulic power 3.0KW
Forming speed about 0-15m/min

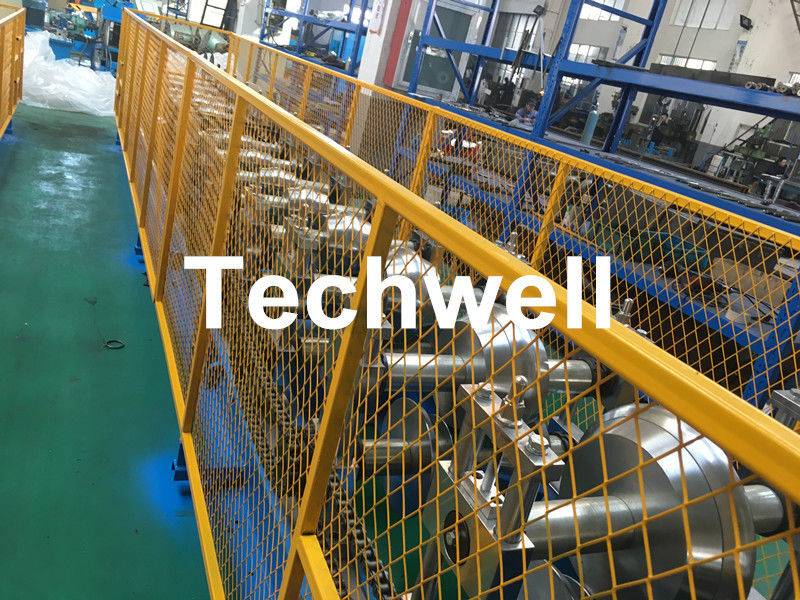

3 Mobile Protective Mesh To avoid accidents, the machine will be covered with the mobile protective mesh
4 Hydraulic pressing & cutting system Material of blade / pressing mould Cr12, 58-62 HRC hardness
Cutting type Hydraulic cutting
Hydraulic power 3.0KW
Length measuring Automatic encoder length measuring
Tolerance of length +/-1.5mm for each piece end product
Encoder OMRON Brand
5 Electrical System PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONICE
Operation type Touch screen & Button
6 Hydraulic Station Hydraulic station Famous Chinese brand
7 Support Tables Table type Simple nonpower type
Function To support the finished corrugated panels



   Working Flow Chart



Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out Table



   Reference Profile Drawing



Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels



   Applications



Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.



   Competitive Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

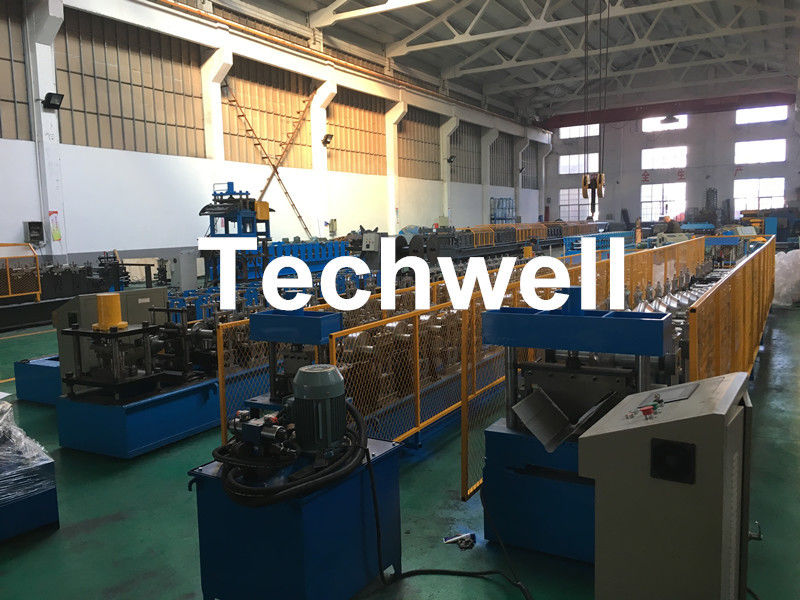

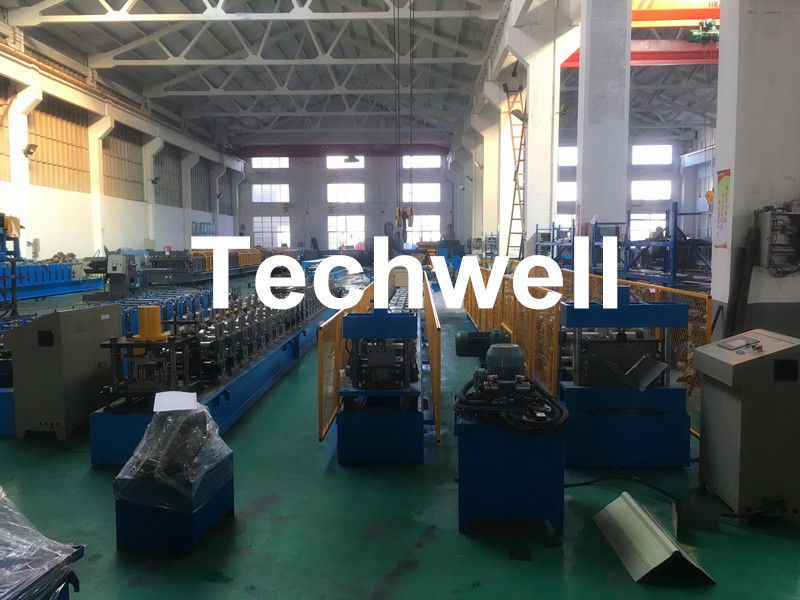

   More Machine Pictures



Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels

Steel Galvanized Ridge Cap Roll Forming Machine With Hydraulic Cutting For Making Roof Panels
