380V / 50Hz / 3Ph 30KW Simple Slitting Line For Slitting Coil Into 12 strips

Name: 380V / 50Hz / 3Ph 30KW Simple Slitting Line For Slitting Coil Into 12 strips
Brand: TECHWELL
SKU: TW-SSCT
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (100 reviews)

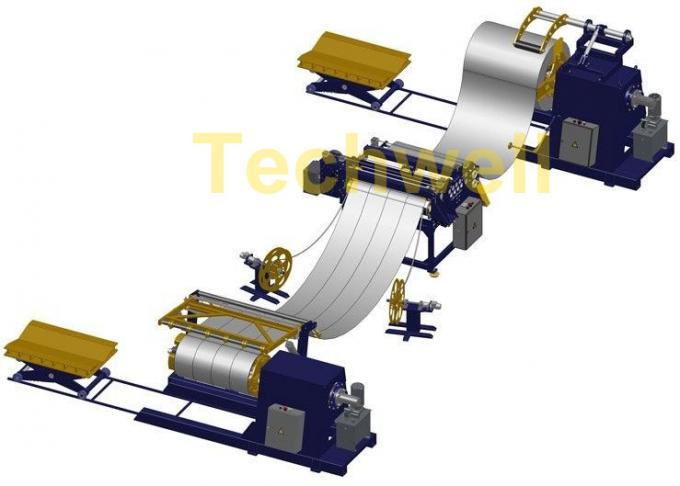

Large Image : 380V / 50Hz / 3Ph 30KW Simple Slitting Line For Slitting Coil Into 12 strips

Product Details:

Place of Origin:	China
Brand Name:	TECHWELL
Certification:	CE
Model Number:	TW-SSCT

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Contact Us
Packaging Details:	Standard packing
Delivery Time:	60-70 working days
Payment Terms:	40% T/T in advance, 60% T/T before shipment
Supply Ability:	10 sets

Contact Now

Detailed Product Description

High Light:

Roll Slitting Machine

Steel Slitting Machine

380V / 50Hz / 3Ph 30KW Simple Slitting Line For Slitting Coil Into 12 strips

Main Specifications

1. Material specification:

Material: Carbon steel, GI, Color steel – Q235-Q350
Thickness: 0.2-1.8mm
Width: 400-1300mm
Inner diameter of coil: φ450—φ510
Outer diameter of coil: φ1500mm. Max.
Weight of coil: 5 Ton. Max.
Diamter of slitting blades: φ120
Material of slitting blades: 40Cr

2. Finished prodcuts data:

Tolerance of width: ≤±0.02mm
Max. strips to be slited: 10 pieces
Min. width of the pieces: 50mm

Summary

This line includes Uncoiler, Feeding Guide, Slitting Machine, Cantilevering Separating, Tension Control Board, Console and General electrical equipment.
Electrical Source: 380V/50Hz/3Ph ( or depend on local requirement )²
Speed of line: 0-30m/min.
Main power: 30 KW
Floor Area accupied by machine: 10m (L) x 3m ( Width )
Production operation: 1 Skilled Worker, 1 common worker
